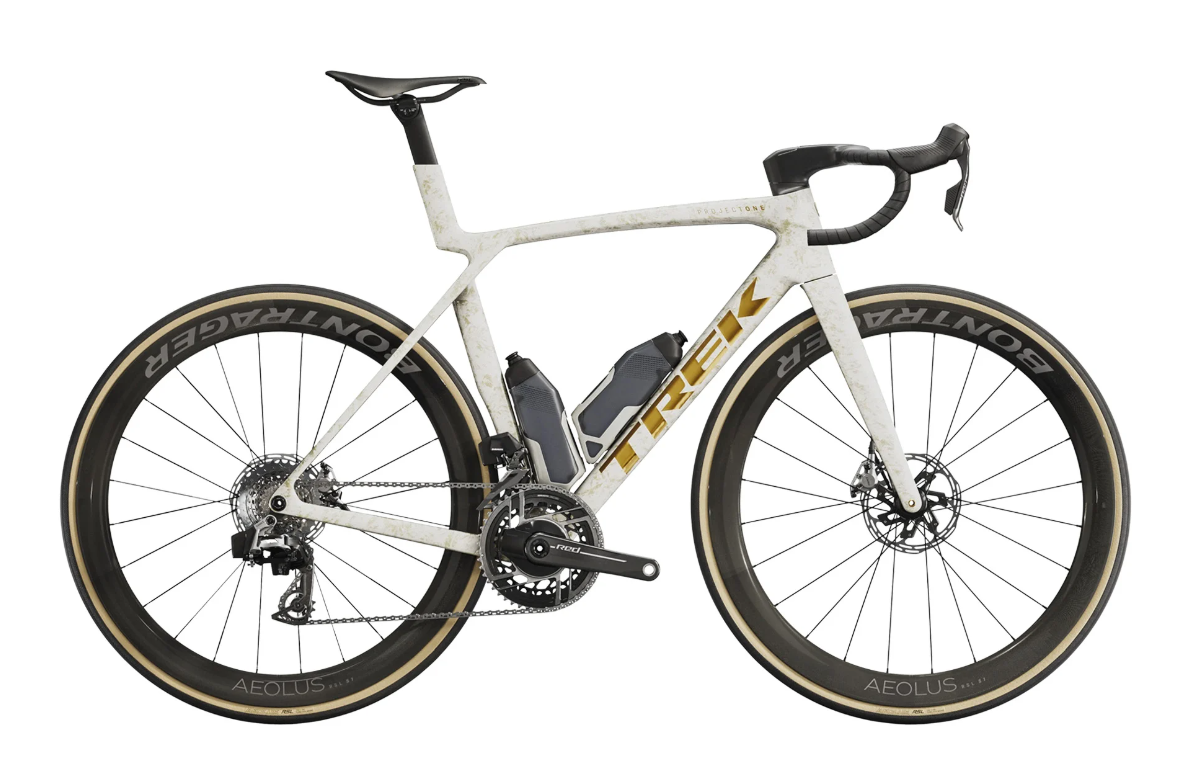

Madone SLR 9 AXS [Gen 8] Vàng

Khung

900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle

Phuộc

Carbon Madone KVF, cổ phuộc tapered, đi cáp ngầm, ngàm thắng đĩa Flat Mount, chân phuộc carbon, trục Thru-Axle 12x100mm

Bánh trước

Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle

Bánh sau

Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle

Khoá trục đùm

Bontrager Switch chamfered thru axle, removable lever

Vỏ/ lốp xe

Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm |Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm

Phụ kiện

Bontrager TLR sealant, 180 ml/6 oz

Cỡ vỏ tối đa

32 mm (as measured, see manual for details)

Tay đề

SRAM RED AXS E1

Đề trước

SRAM RED AXS E1, braze-on

Đề sau

SRAM RED AXS E1, 36T max cog

Giò đạp

Size: XS, S SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length | Size M : SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length | Size ML,L: SRAM RED AXS E1, power meter, 48/35, DUB, 172.5 mm length | Size XL: SRAM RED AXS E1, power meter, 48/35, DUB, 175 mm length

Chén trục giữa

SRAM DUB, T47 threaded, internal bearing

Ổ líp

SRAM RED XG-1290 E1, 10-33, 12-speed

Sên xe

SRAM RED E1, 12-speed

Yên xe

Size XS,S Aeolus RSL, carbon rails, 155 mm width | Size M,ML,L,XL  Aeolus RSL, carbon rails, 155 mm width

Cốt yên

Size XS,S, M Madone aero carbon seat post, 0 mm offset, short length Size M, ML, L, XL Madone aero carbon seat post, 0 mm offset, long length

Tay lái

Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop Size XS: 35 cm control width, 38 cm drop width, 80 mm stem length | Size S 37 cm control width, 40 cm drop width, 90 mm stem length | Size M 39 cm control width, 42 cm drop width, 90 mm stem length | Size ML, L 39 cm control width, 42 cm drop width, 100 mm stem length Size XL 41 cm control width, 44 cm drop width, 110 mm stem length

Rotor thắng

Max brake rotor sizes: 180 mm front, 160 mm rear

Trọng lượng

ML - 7.00 kg / 15.44 lbs (với TLR sealant, không ruột, không gọng và bình)

Tải trọng

275 pounds (125 kg) (bao gồm xe, người sử dụng và phụ kiện)
