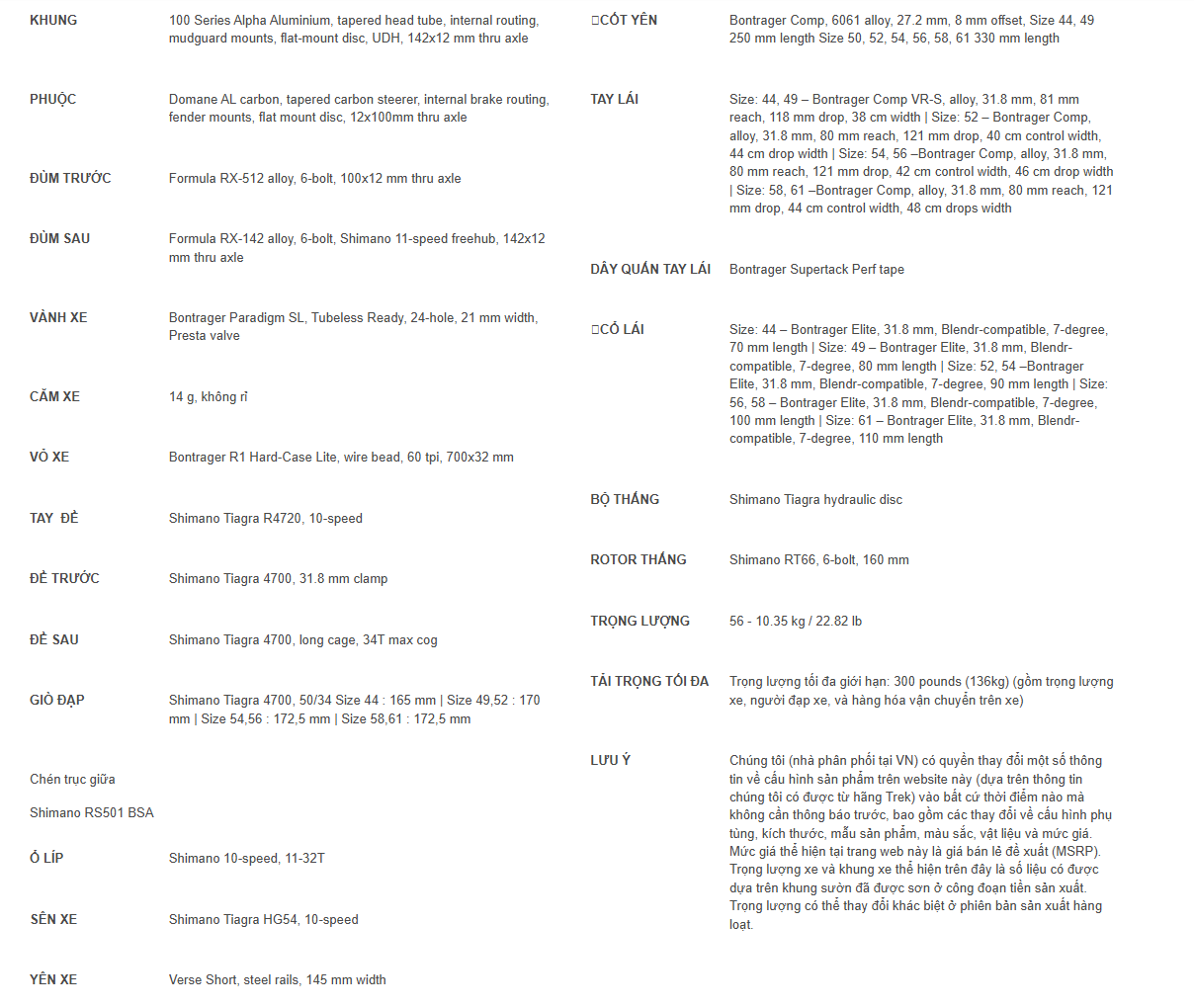

Domane AL 4 Gen 4

 Khung xe

100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, 142×12 mm thru axle

Phuộc

Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12×100 mm thru axle

Đùm trước

Formula RX-512 alloy, 6-bolt, 100×12 mm thru axle

Khoá đùm trước

Bontrager Switch chamfered thru axle, removable lever

Đùm sau

Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142×12 mm thru axle

Khoá đùm sau

Bontrager Switch chamfered thru axle, removable lever

Vành xe

Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve

Căm xe

14 g stainless steel, black

Vỏ xe

Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×32 mm

Cỡ vỏ tối đa

38mm without mudguards, 35mm with mudguards

Tay đề

Shimano Tiagra R4720, 10-speed

Đề trước

Shimano Tiagra 4700, 31.8 mm clamp

Đề sau

Shimano Tiagra 4700, long cage, 34T max cog

Giò đạp

Size: 44 – Shimano Tiagra 4700, 50/34, 165 mm length | Size: 49, 52, 54 – Shimano Tiagra 4700, 50/34, 170 mm length | Size: 56, 58, 61 –Shimano Tiagra 4700, 50/34, 172.5 mm length

Trục giữa

Shimano RS501 BSA

Ổ líp

Shimano 10-speed, 11-32T

Sên xe

Shimano Tiagra HG54, 10-speed

Bàn đạp

N/A

Yên xe

Verse Short, steel rails, 145 mm width

Cốt yên

Size: 44, 49 – Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length | Size: 52, 54, 56, 58, 61 –Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

Tay lái

Size: 44, 49 – Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width | Size: 52 – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width | Size: 54, 56 –Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width | Size: 58, 61 –Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width

Dây quấn

Bontrager Supertack Perf tape

Cổ lái

Size: 44 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length | Size: 49 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length | Size: 52, 54 –Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length | Size: 56, 58 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length | Size: 61 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

Bộ chén cổ

FSA Integrated, sealed cartridge bearing, 1-1/8″ top, 1.5″ bottom

Thắng xe

Shimano Tiagra hydraulic disc

Rotor thắng

Shimano RT66, 6-bolt, 160 mm

Trọng lượng

56 – 10.35 kg / 22.82 lbs

Lưu ý

Tối đa 125kg bao gồm người lái, khung và đồ đạc trên xe
